Cabo 200i

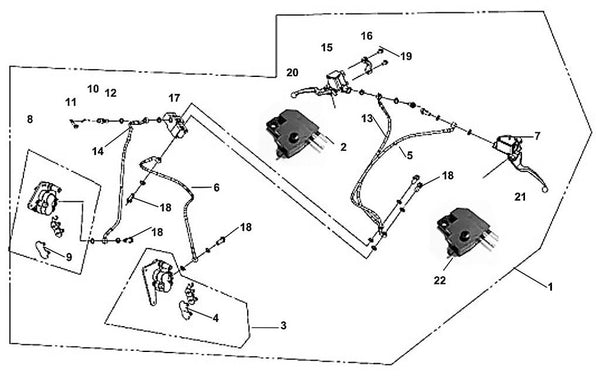

Cabo 200i – F-04 CBS Brake system – 01 Brake System ASSY

Cabo 200i – F-04 CBS Brake system – 02 FR. Stop SW. ASSY

Cabo 200i – F-04 CBS Brake system – 03 RR. Caliper ASSY

Cabo 200i – F-04 CBS Brake system – 04 Rear Pad A/B

Cabo 200i – F-04 CBS Brake system – 05 RR Brake Hose A COMP

Cabo 200i – F-04 CBS Brake system – 06 RR Brake Hose B COMP

Cabo 200i – F-04 CBS Brake system – 07 RR. M/C ASSY

Cabo 200i – F-04 CBS Brake system – 08 FR. Caliper ASSY

Cabo 200i – F-04 CBS Brake system – 09 Front Pad Set

Cabo 200i – F-04 CBS Brake system – 10 Bleeder Screw

Cabo 200i – F-04 CBS Brake system – 11 Bleeder Cap

Cabo 200i – F-04 CBS Brake system – 12 T-fuel Pipe Joint ASSY

Cabo 200i – F-04 CBS Brake system – 13 FR Brake Hose A COMP

Cabo 200i – F-04 CBS Brake system – 14 FR Bbrake Hose B COMP

Cabo 200i – F-04 CBS Brake system – 15 FR M/C ASSY

Cabo 200i – F-04 CBS Brake system – 16 M/C Holder

Cabo 200i – F-04 CBS Brake system – 17 CBS Control Valve ASSY

Cabo 200i – F-04 CBS Brake system – 18 Oil Bolt 10*22

Cabo 200i – F-04 CBS Brake system – 19 Flange Bolt 6*22

Cabo 200i – F-04 CBS Brake system – 20 R. Lever STRG. Handle

Cabo 200i – F-04 CBS Brake system – 21 L. STRG. Handle Lever

Cabo 200i – F-04 CBS Brake system – 22 Rear Stop SW. ASSY
